Our Products

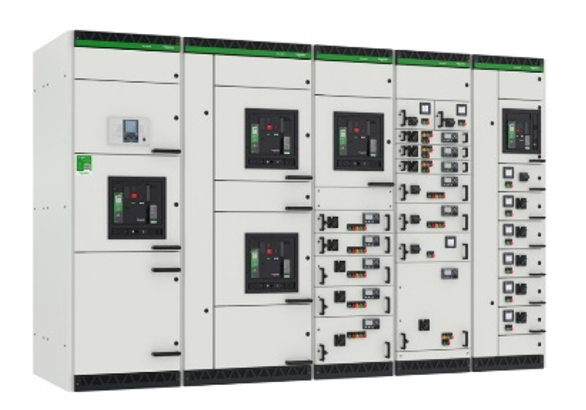

The LV Panels are metal-enclosed switchgear designed for electrical distribution, protection, and power supply throughout the facility. They have an indoor, dead front, multi-cubicle design, are free-standing, protected against dust and vermin, and are front-operated, featuring a clean and modern appearance.

• Current rating 800Amps to 7000Amps
•  Form of construction Form-3 and Form-4 (up to Type-7)

LV – BlokSet:

Blokset is a highly dependable system designed to ensure the smooth operation of your installation. It offers a high level of reliability and safety, reinforcing the protection of life and property. Blokset complies with international standards, including IEC 61439-1, IEC 60529, and IEC 60947, as well as local standards, enabling it to meet the requirements of local authorities and project specifications.

• Current rating up to 7000A
• Form of construction Form-3 and Form-4 (up to Type-7)

LV – Prisma:

Prisma TT complies with the Fully Type Tested Assemblies (TTA) according to IEC standards 61439-1 & 2.

• Current rating up to 4000A
• Form of construction Form-3 and Form-4 (up to Type-7)

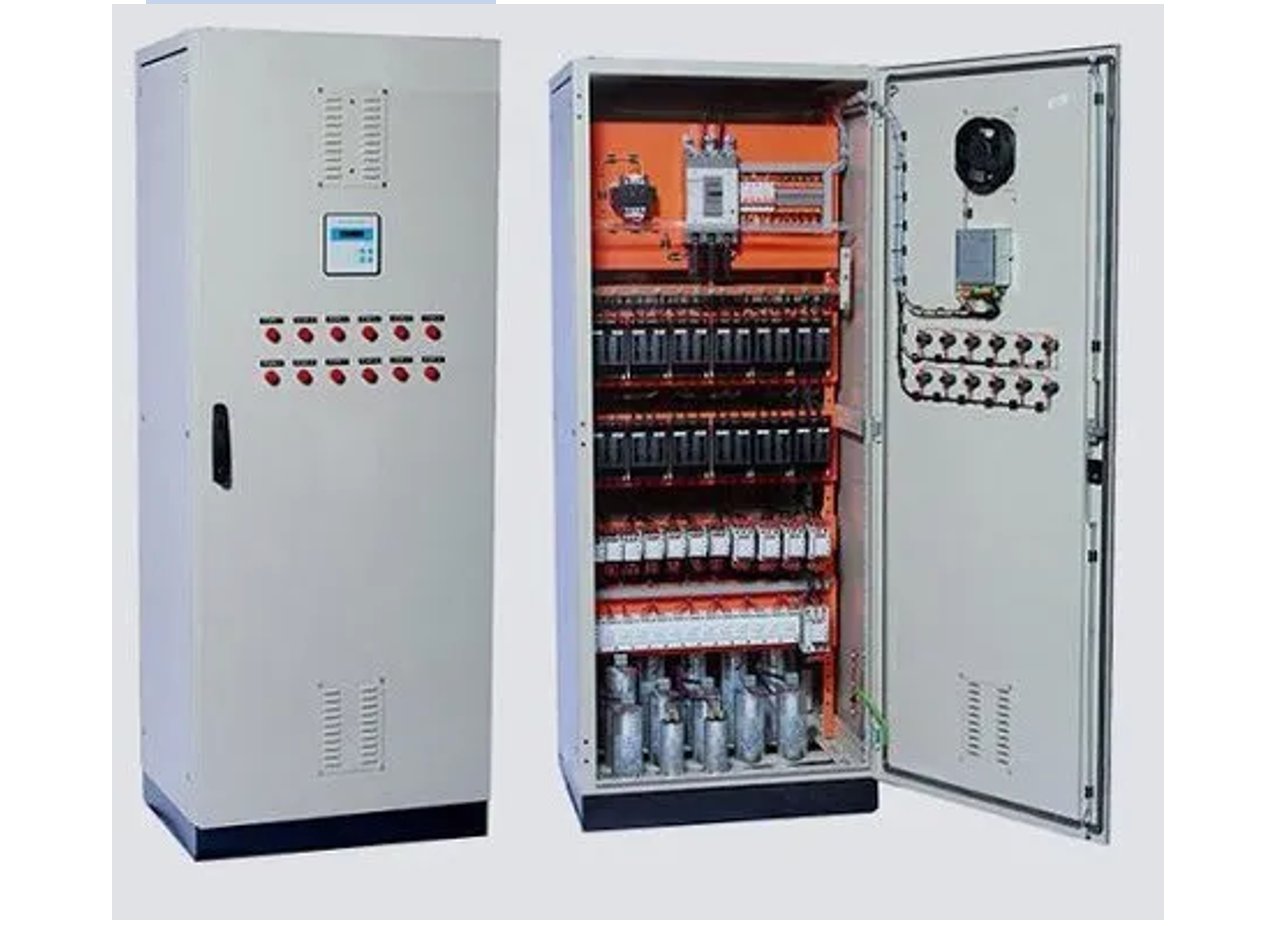

Low Voltage Power Factor Correction (PFC) banks and Automatic Power Factor Correction (APFC) equipment are designed for power factor correction purposes and come equipped with built-in switchgear and control gear. By installing capacitors, voltage drops can be reduced upstream from the point where the power factor correction device is connected. This helps prevent network overload and reduces harmonics, eliminating the need for oversizing the installation.

Overview

SMDB PowerlinePlus is a fully customizable, type-tested distribution board designed for sub-main applications in commercial, industrial, and residential projects. Engineered for safety and flexibility, it supports Schneider Electric MCCBs (NSX/CVS/EZC) and offers modular configurations for diverse electrical distribution needs. Removable top and bottom gland plates are provided for ease of installation and cabling. Removable gland plates allow fitting of additional items such as bottom cabling boxes and metering extension boxes. Key highlights:

• Certified Safety: DEKRA/KEMA tested, IP54/IK08 rated, and 25kA short-circuit withstand.
• Plug-and-Play: Pre-wired metering options, easy cabling, and DIN rail accessories.
• Tailored Solutions: Custom busbars (250A–630A), enclosure sizes, and outgoing ways (4–18 TPN).

Key Features

✔ Robust Build

• 1.5mm electro-galvanized steel (RAL 9002) | IP54 (IP55 optional).
• Tin-plated copper busbars with 25kA/3s withstand (630A).

✔ Certified Compliance

• IEC 61439-3 | Form 2b separation | 8mm clearances (8kV impulse).

✔ Modular Design

• Incoming: NSX/CVS MCCBs or isolators (250A–630A).
• Outgoing: MCBs, MCCBs (up to 250A), or RCBOs.

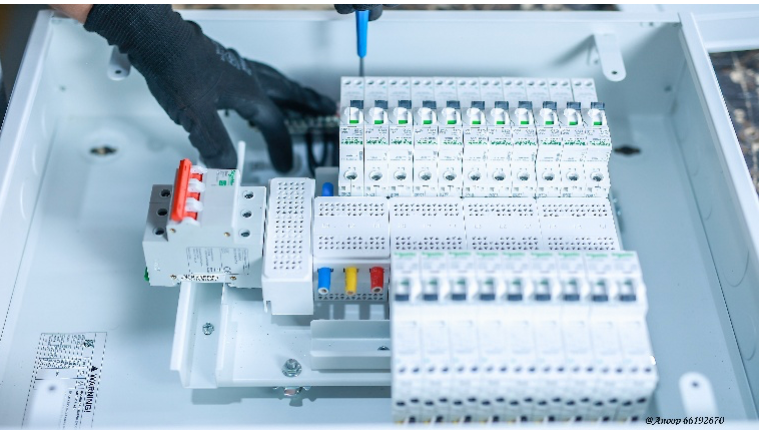

Overview

Schneider Electric’s Distribution Boards (DB) are designed for safe and efficient power distribution in residential, commercial, and industrial applications. Available in multiple configurations (single-phase, three-phase, vertical/split busbar, DIN rail, and ROW types), these boards comply with IEC 61439 standards and offer modularity, safety, and smart connectivity options.

Key Features

✔ Premium Design

• Sleek white finish (RAL 9003) with true flush mounting
• Reversible door for flexible installation

✔ Enhanced Safety

• DEKRA-certified, IP41/IP43 (DIY upgradeable)
• Plated neutral/earth bars & earthed door assembly

✔ Smart Ready

• EcoStruxure™ compatible for real-time energy monitoring
• Supports PowerTags and IoT integration

✔ Sustainable Solution

• Green Premium™ certified (96% recyclable)
• Plastic-free, recycled packaging

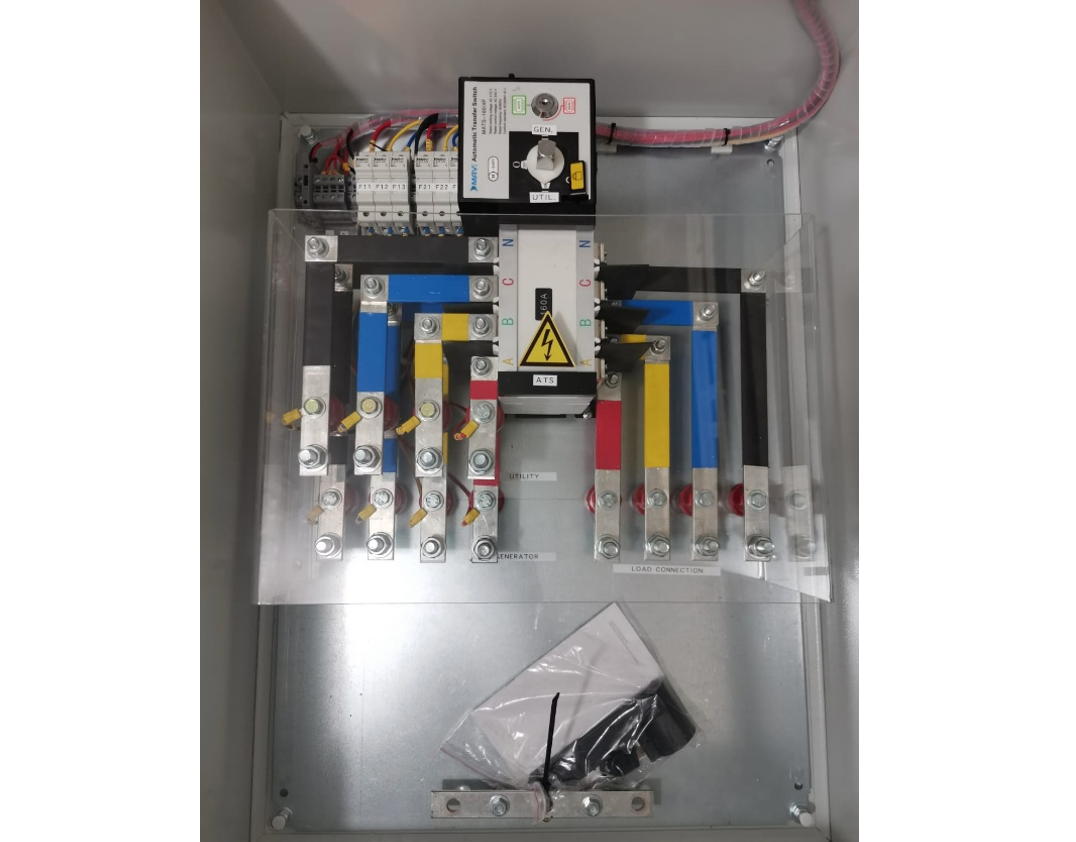

Automatic Transfer Switches (ATS)
Our ATS panels provide seamless automatic switching between utility and backup power sources (generators/UPS). Available in open or closed transition models from 100A to 4000A, these intelligent switches continuously monitor power quality and automatically initiate transfers during outages, ensuring uninterrupted operation for data centers, hospitals, and industrial facilities.

Manual Transfer Switches (MTS)
For controlled power source selection, our MTS panels offer safe manual switching between sources with mechanical interlocks to prevent parallel operation. These rugged switches (63A-1600A) feature clear status indication and optional weatherproof enclosures, ideal for generator systems, maintenance operations, and equipment testing in commercial and industrial settings.

UPS Bypass Panels
Our maintenance bypass panels enable complete UPS isolation while maintaining power to critical loads. The three-position mechanism (Normal/Bypass/Isolation) with visual indicators allows safe servicing of UPS systems without downtime. Available from 40A to 4000A, these panels are essential for data centers, medical facilities, and telecom infrastructure.

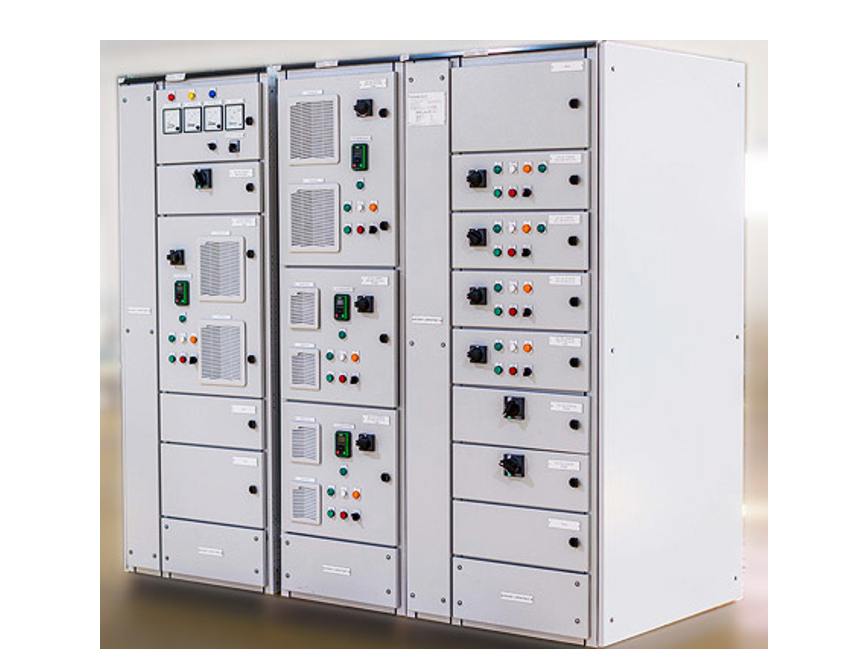

In a low voltage network, the Motor Control Centre (MCC) is positioned right after the Main Distribution Board (MDB) panels. The MCC includes a main circuit breaker, several outgoing feeders, and motor starters. These panels are floor-standing and designed for front access, allowing easy access to functional units and cable terminations.

• Current rating up to 7000Amps

MCC – Fixed type

MCC – Draw-out type.

Components include electromechanical devices like switches, contract relay motor starters, and overload-protection devices. MCP also allow for switching on or off high-power circuits through low voltage-controlled circuits. It provides a safety feature and helps reduce power consumption. The purpose of an MCC is to manage and protect electric motors in an industrial or commercial setting. MCCs provide efficient power management, safety, and protection for the motors in the system.

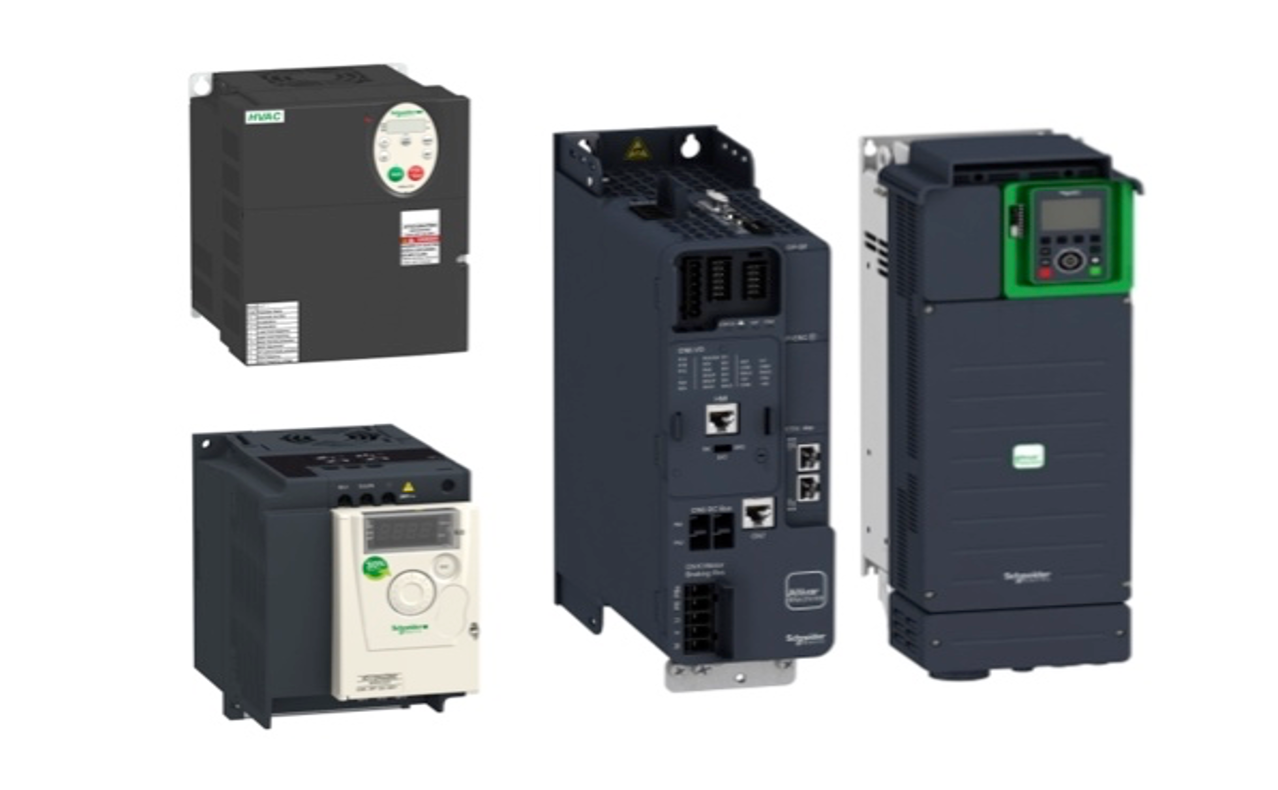

Variable speed drives (VSDs) are devices that regulate the rotation speed of an electric motor. These motors power pumps, fans, and other mechanical components of buildings, plants, and factories. There are a few types of variable speed drives, but the most common is the variable frequency drive (VFD). VFDs are widely used to control AC motors in most applications.

1.     ATV212

2.     ATV310

3.     ATV610

4.     ATV630
